VCD 2.0 Toolkit:
Volume Map Frame of Reference

Both the Mac and the PC VCD 2.0 Toolkits have a limit to the number menus and sequences that can be displayed hierarchically in the Volume Map window. The hierarchy of objects displayed currently in the Volume Map window is defined as the Frame of Reference. Sequences and Menus are hierarchical objects-- that is, they have branches to multiple objects.

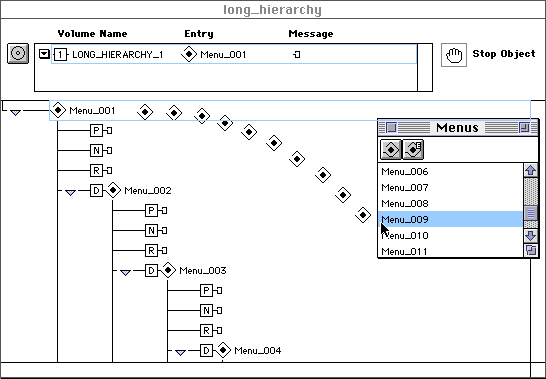

To get around this limitation, and jump to a different part of the hierarchy within a volume, you must change theframe of reference within the Volume Map window. To do that, drag&drop the desired menu/sequence/event from the corresponding object window onto the first (top-left-most) line in the Volume Map as shown:

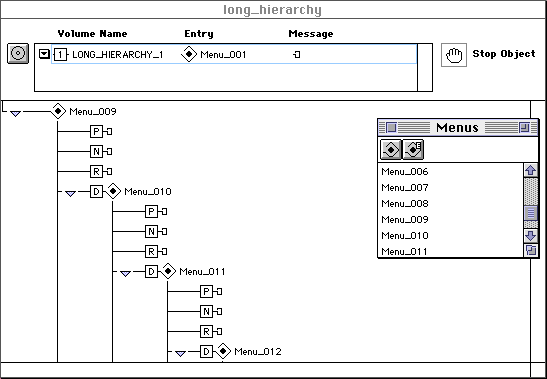

The frame of reference should now be shifted, so that the object dropped is now the top-left-most object displayed in the Volume Map window, as shown:

To go back to the start of the Volume, either

Warning:
The PC version can crash with a Stack Overflow if you try to jump back the frame of reference to one with all of its hierarchy open. To avoid this problem:
